We are proud to release our newest enhancement to the industrial carrier platform with a new longer heavy-duty 3-stage underlift. This new 3-stage underlift will be available as an upgrade option on new orders of long-wheelbase 30-Series and 40-Series industrial carriers. (LCB in MQQ)

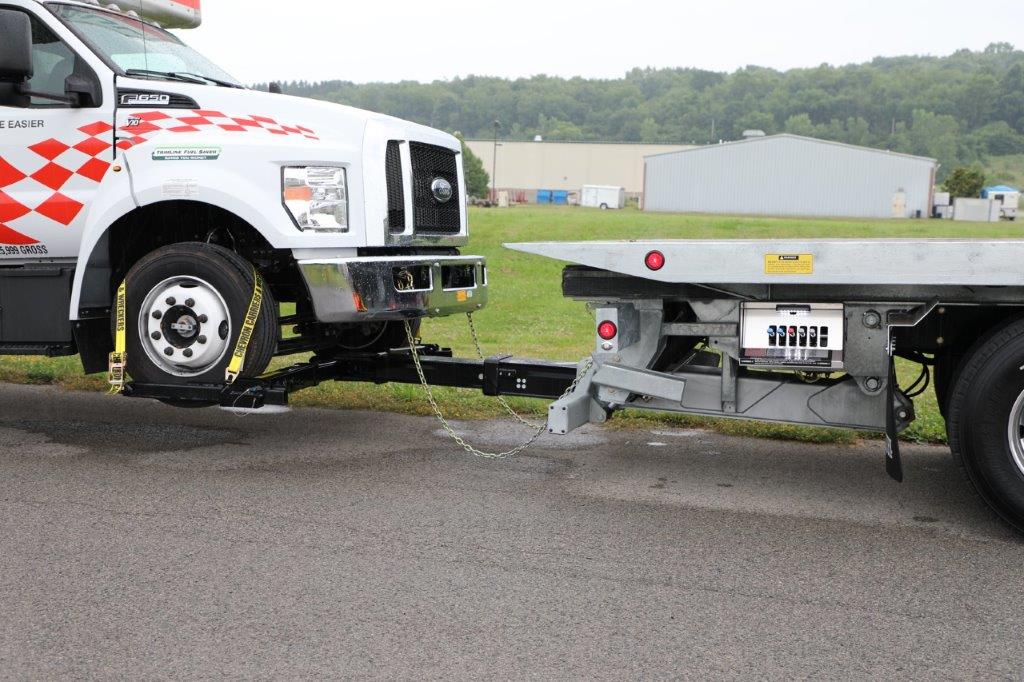

The underlift offers a 77inch maximum reach and a lift rating of 20,000 lbs. when fully retracted. With this new option, towers gain a 10,000 lb. extended-lift rating and an impressive 50,000 lb. tow rating. This new 3-stage designed underlift affords towers a much shorter retracted length of just 15 inches, thereby reducing rear overhang when not in use. When the underlift is at full extension, there is 33 inches of overlap between each of the three stages, which adds strength and minimizes flexing when under load. This new underlift uses the same heavy-duty hydraulic extension cylinder that is found on our other heavy-duty wreckers and provides a full 62 inches of travel.
The 3-stage underlift comes standard with removable wheel grids and 6,000 lb.-rated steel L-Arm retainers. With crossbar extensions and wheel grids installed, this set up offers towers a maximum 96.5-inch wide grip when using the L-Arms. Add the optional attachment for towing forks, and the 3-stage underlift is transformed to allow for towing heavier trucks up to 20,000 lbs. With its 45.5 inch-wide crossbar this heavy-duty underlift has ample clearance to reach between rear tractor axles during rear tow applications. This new underlift option is available for all new orders of long-wheelbase 30 and 40-Series Industrial Carriers.
